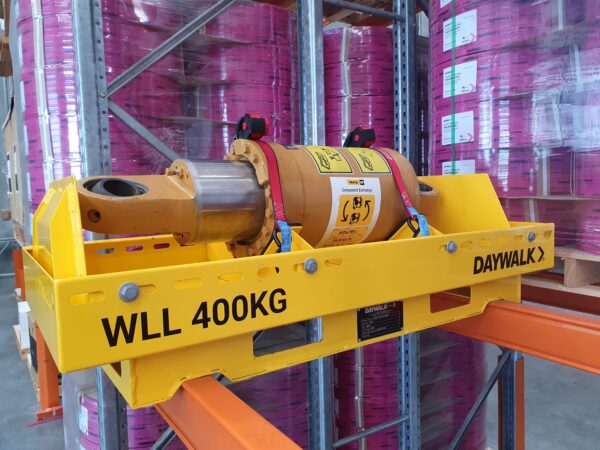

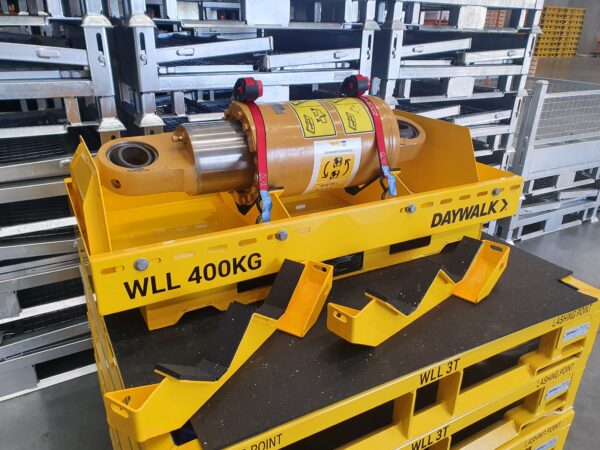

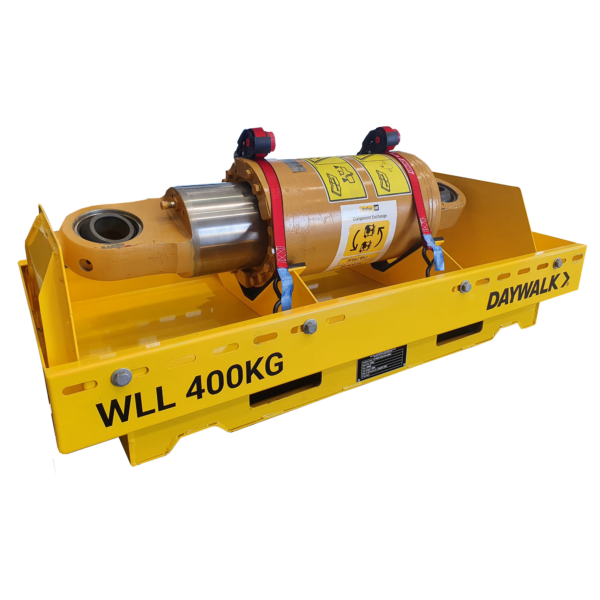

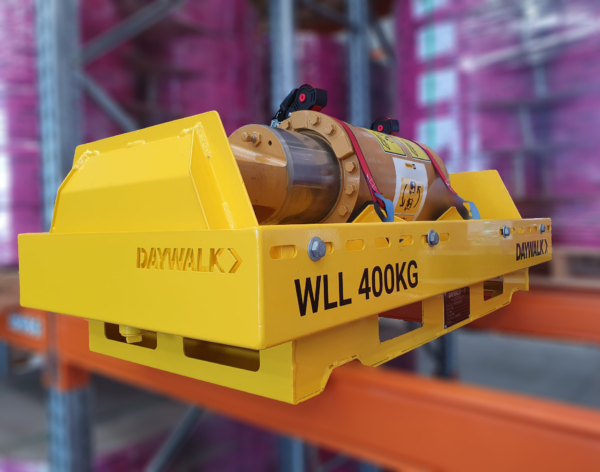

Small Spartan Cylinder Frame

SKU13-PSCS1200/550/400KG/SGLV/KIT
Patent Application No.2022209297
The DAYWALK Spartan Cylinder Frame Range is a transport frame range designed for world-class adjustability, functionality and safety in transport of multiple cylindrical items. Being a pre-engineered solution, which is certified for transport, this solutions gives you peace of mind that your transport will meet Chain of Responsibility (CoR) compliance requirements.
This system is designed to be a full protection and handling system for small cylinders and can be fitted with our rust prevention package for any critical bare metal surfaces.
  • WLL 800kg
  • To suit Cylinders approx. max length 2000mm approx. diameter 300mm (single vee) and 200mm (double vee)
  • Adjustable End Stoppers – lined with rubber to prevent steel on steel contact
  • Adjustable Chocking System – lined with Load Restraint Rubber to prevent steel on steel contact
  • Drip Tray with removable plug on end for easy emptying of liquids from the bund
  • Chocking System includes built in securing
  • points for ratchets
  • Forklift safe
  • Double and single chock options available.
  • Logistics Engineered and Rated for Transport
  • Other sizes available
SKU 13-PSCS1200/550/400KG/SGLV/KIT
WLL 400kg
Ext Dimensions L 1200  W 550
Finish
Includes Internal lashing lugs
Adjustable chocks and end stoppers
Certification & Identification plates
Compatibility Forklift
Frame racking compatible
Complies with Logistics Engineering certification for compliance to the Performance Standards (as defined in Schedule 7 of the Heavy Vehicle (Mass, Dimension and Loading) National Regulation 2018) and AS3990:1993
Colour Safety Yellow
