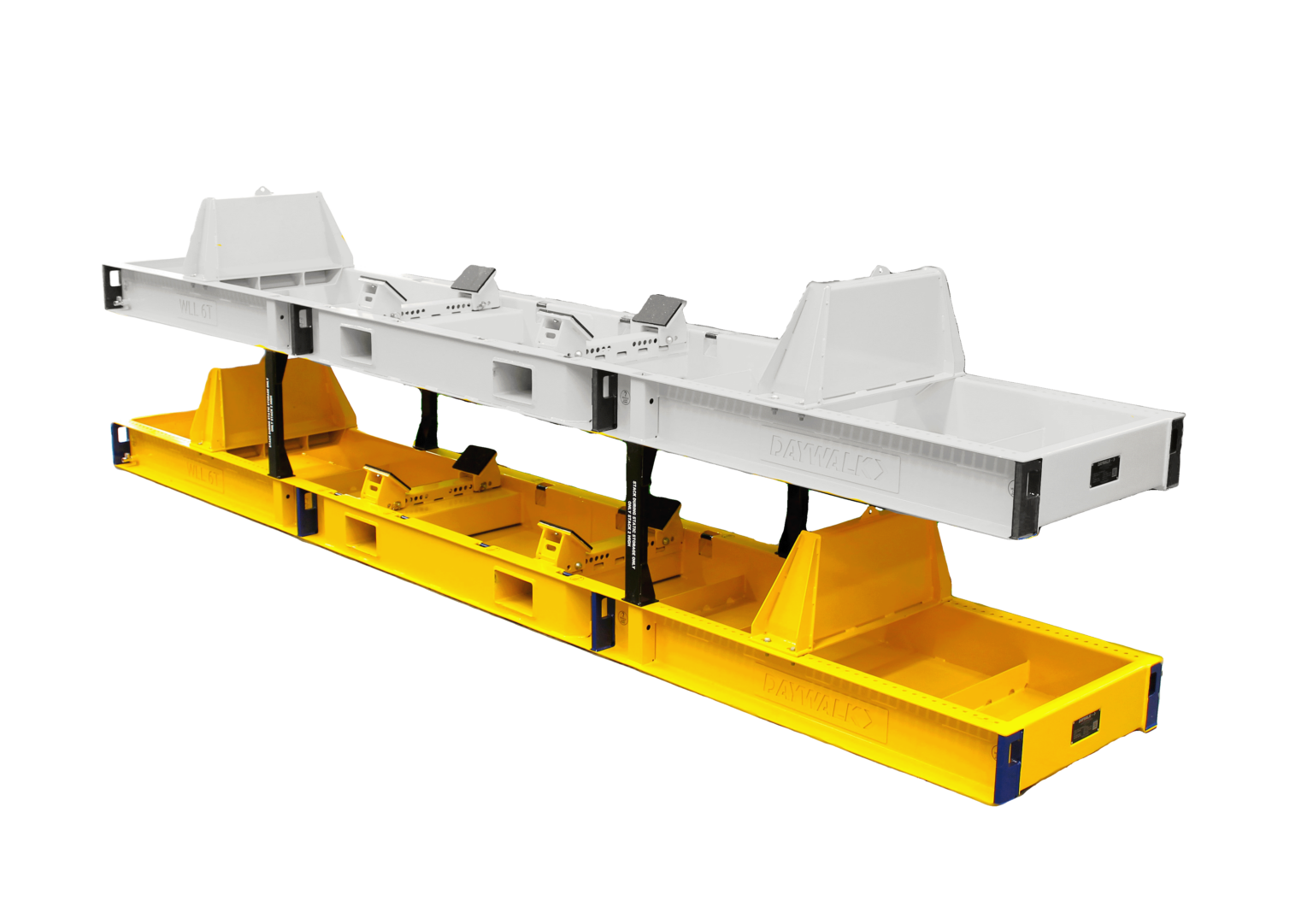

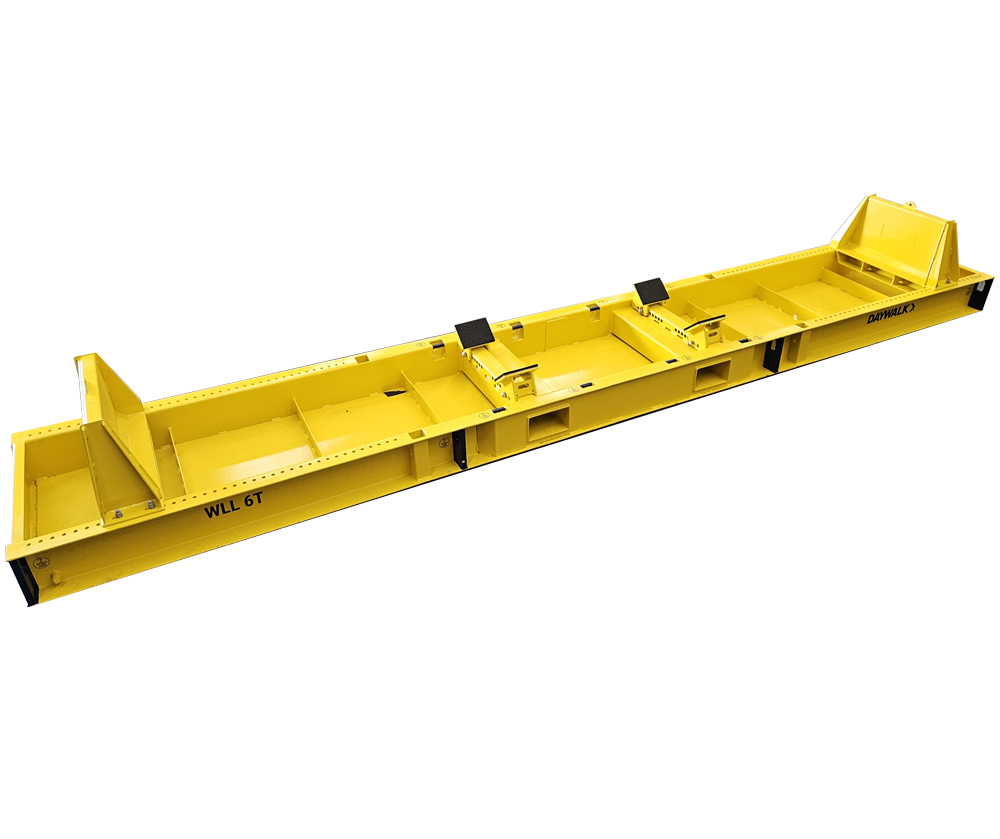

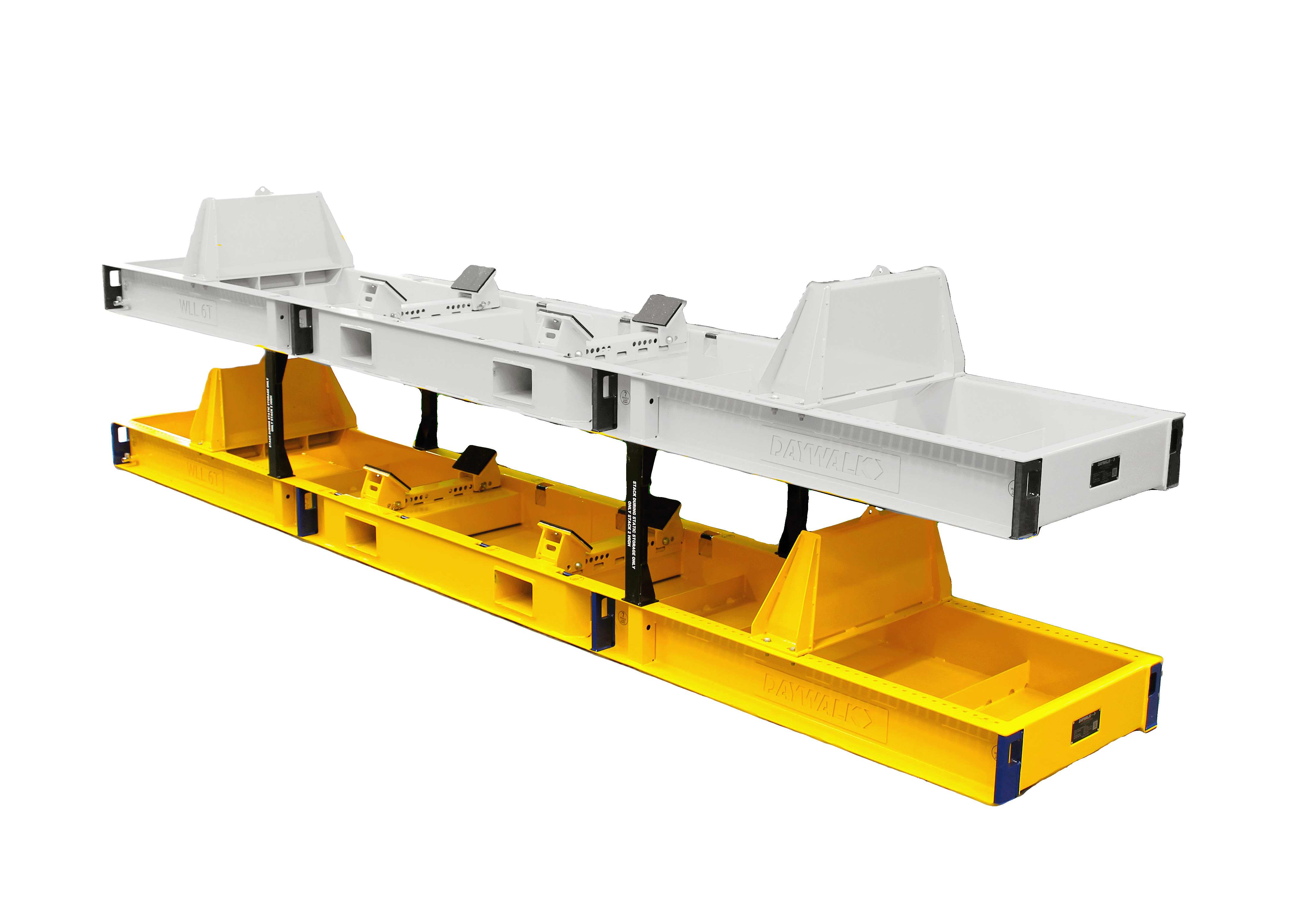

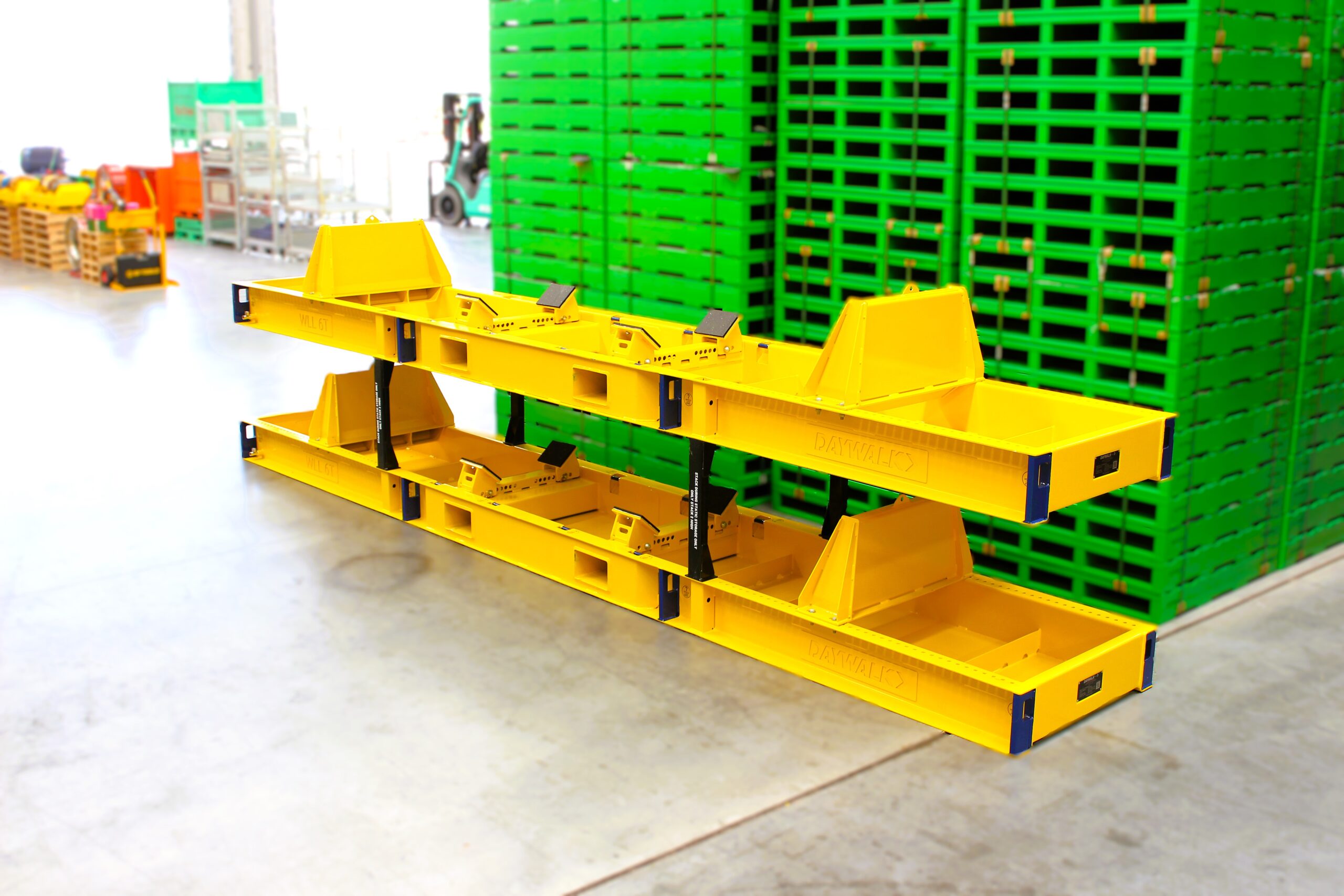

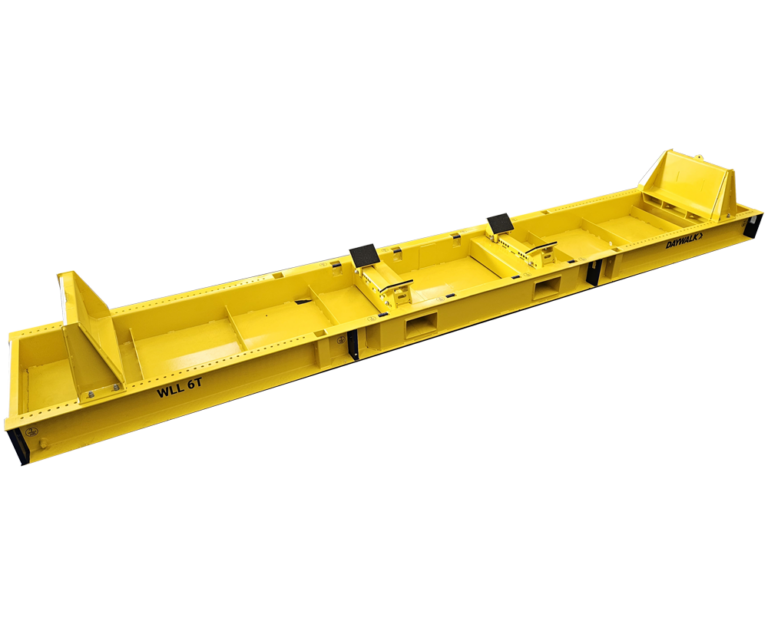

6T Adjustable Cylinder Frame

SKU13-PSCS5800/950/6T/KIT
Patent Application No.2021102166

The DAYWALK 6T Adjustable Cylinder Frame is a transport frame range designed for world-class adjustability, functionality and safety in transport of multiple cylindrical items. Being a pre-engineered solution, which is certified for transport, this frame gives you peace of mind that your transport will meet Chain of Responsibility (CoR) compliance requirements.
This system is designed to be a full protection and handling system for large cylinders and can be fitted with our rust prevention package for any critical bare metal surfaces.

  • 6 Tonne Capacity
  • 5800mmLx950mmWx688mmH overall
    dimensions
  • Logistics Engineered and Rated for Transport
  • Min Cylinder Length 2630mm, Max Cylinder Length 5540mm
  • Min Cylinder Dia. 300mm, Max Cylinder Dia. 800mm
  • End-stoppers for transport safety
  • No direct steel on steel contact to protect
    cylinder coating/ painting
  • Fitted with a drip tray and bung for oil capture
  • Arresta Lugs for safer truck restraint
  • Forklift Compatible
  • Other pallet sizes available
SKU 13-PSCS5800/950/6T/KIT
WLL 6T
Ext Dimensions L 5800 W 950 H 688
Finish Galvanised & Powdercoated.
Includes 8 x Internal Lugs; 8 x External Lugs
Certification & Identification Plaque
Compatibility Forklift
DAYWALK load guide
Complies with Logistics Engineering certification for compliance to the Performance Standards (as defined in Schedule 7 of the Heavy Vehicle (Mass, Dimension and Loading) National Regulation 2018) and AS3990:1993
Colour Safety Yellow
